M-Series
LiDAR Solutions for Industrial and Security Applications
M-Series Overview
Quanergy’s M1 Edge™ and M8-Prime™ LiDAR sensors offer powerful capabilities for various industrial and security applications.
The M1 Edge™ integrates 2D LiDAR sensing with Quanergy’s QORTEX Aware™ software, providing automated object detection and monitoring for collision avoidance, smart navigation, and security. Designed for AGVs, AMRs, and perimeter protection, it offers dynamic detection zones adaptable to movement and multiple evaluation fields, ensuring precise object monitoring without extensive programming.
The M8-Prime™, built on Quanergy’s advanced 3D scanning technology, is tailored for industrial and mapping needs. It delivers industry-leading accuracy, capturing 1.3M points per second with three returns, and enables integration via sensor API. This makes it an ideal choice for high-precision applications requiring expansive data capture and robust environmental performance.
Both solutions demonstrate Quanergy’s innovation in leveraging LiDAR for operational efficiency and security enhancement.

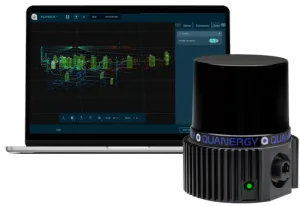

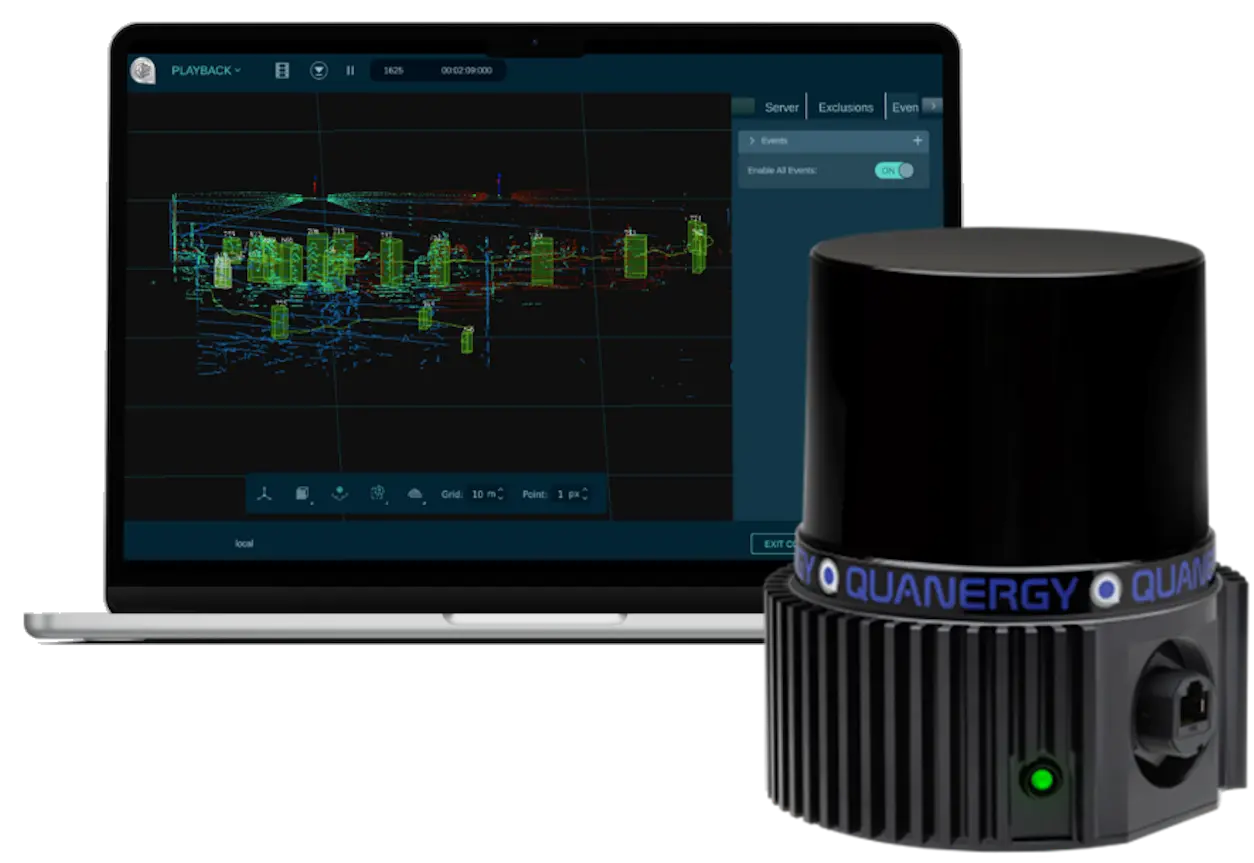

M8-Prime™ LiDAR Sensors
Designed for Industrial and Mapping applications, M8-Prime™ provides industry-leading pinpoint accuracy of 0.033-0.132° and captures up to 2x more data with 1.3M points per second with three returns. Built upon the superior 3D scanning technology of previous models, M8-Prime™, 3D LiDAR sensor series enables customers to add its sensor API code into their software program to interface instead of the webserver.
M1 Edge™ LiDAR Sensors
M1 Edge™ is 2D LiDAR sensor integrated with QORTEX Aware™, Quanergy’s proprietary smart object detection software, and is designed for a wide variety of industrial and security applications without additional programming.
For mobile industrial equipment including AGV or AMR, M1 Edge™ enables reliable collision avoidance and smart navigation by monitoring the surrounding area, flagging potential dangers and obstacles in the vehicle’s path. The detection zones being monitored can dynamically change based on the vehicle’s movement.
For security application, the M1 Edge™ solution surveys user-defined detection zones and triggers an alarm on the sensor’s digital output if there is any activity within the zones. Users can create multiple evaluation fields, 8 for M1 Edge™ and M1 Edge™ PoE, each field supports up to 3 or 128 detection zones, respectively. The evaluation field is selected either via the sensor’s digital input for M1 Edge™ or Ethernet API for M1 Edge™ and M1 Edge™ PoE.
QORTEX Aware™
Without additional programming, Quanergy’s proprietary smart object detection software automatically collects, analyzes, and interprets LiDAR point cloud data.
